Frame Mounting Bolt Allan/Hex M6 L14mm
Frame Mounting Bolt Allan/Hex M6 L14mm
Frame Mounting Bolt Allan/Hex M6 L14mm
Frame Mounting Bolt Allan/Hex M6 L14mm
Frame Mounting Bolt Allan/Hex M6 L14mm
Frame Mounting Bolt Allan/Hex M6 L14mm
Frame Mounting Bolt Allan/Hex M6 L14mm
Frame Mounting Bolt Allan/Hex M6 L14mm

Frame Mounting Bolt Allan/Hex M6 L14mm

Vendor
Go Project
Regular price
€1,25
Sale price
€1,25
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

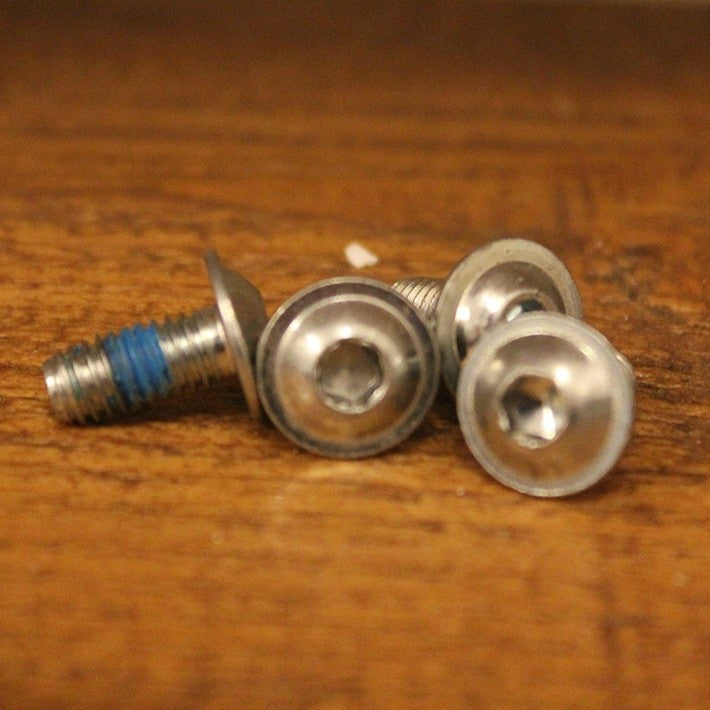

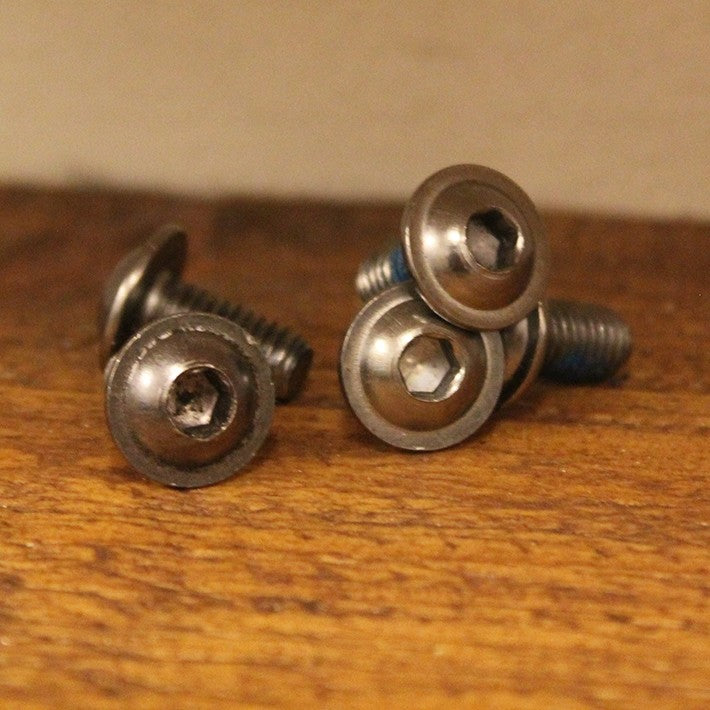

Go Project frame bolts nowcome with 'Patchlock' applied to the thread, reducing the chance of the bolts coming loose once fitted.

The Go Project Button Head UFS Frame bolts are used for attaching your frames to your skates on most skates with replaceable frames (UFS or SSM mount).

With the recent improvements in the engineering tolerances of skate frames (ie frames that allow the wheels to sit really close to the underside of the boot), the tapered shape of the bolt head allows for extra wheel-room when space is tight.

The bolts are high quality to reduce the risk of slipping your allen-key and rounding the head.

The bolt is designed for use with a 4mm allen key wrench. The bolts are 14mm long.

(please note these are not long enough to use as rear frame bolts for Razor Cult style skates)

Sold in sets of 4.

This specific frame mounting bolt is actually the bolt that is also used for all modern Ground Control axles

The frame is the bottom of a skate that holds the wheels. It is mounted to the boots with 2 or 3 bolts. There are a couple of different mounting types, Learn more about these here:
https://www.thisissoul.com/blogs/buyers-guide/everything-about-frame-mounting

All skates (except those from the Fila or Seba brand) use M6 thread. This means the thread has an outer diameter of 6mm.

If your frame mounting bolts are too short, then you might end up with a missing bolt after a few sessions. Bolts might unscrew because of the vibrations. This happens quicker if you scre, and unscrew your bolt allot. Doing this causes the blue paint drip that was on your bolt when it was new to disappear. This can be easily reapplied by getting some Loctite, find it at the maintenance section of our webshop.

Be aware of frame mounting bolts that are too long, The bolts will stick out in the boot and pierce your liner and your foot.
Measure the length of one of your current bolts to know what length you need, if you have any questions about this, then just send us a photo of your skate and frame setup so that we can give you free advice.

M = 6mm

L = 14mm

X = 13mm

Product Specifications
Bolt diameter M6
Bolt length 14mm
Bolt type Frame Bolts & Nuts
Color Grey
Screw head Inbus -- maat 4
