Frame Mounting Bolt flat head 5/16inch L12 pcs

Note, the picture is not exactly the right one! this bolt has a more flat head

The frame is the bottom of a skate that holds the wheels. It is mounted to the boots with 2 or 3 bolts. There are a couple of different mounting types, Learn more about these here:
https://www.thisissoul.com/blogs/buyers-guide/everything-about-frame-mounting

Black FR Mounting screw.

These bolts are sold per piece. Not in a set.

The thread size looks allot like M8, but it is actually an english  5/16-18 UNC standard

This bolt wil only fit on the FR1-FR2-FR3 models and the Micro Delta skates.
Almost all other models and brand skates need a M6 type bolt.

If your frame mounting bolts are too short, then you might end up with a missing bolt after a few sessions. Bolts might unscrew because of the vibrations. This happens quicker if you scre, and unscrew your bolt allot. Doing this causes the blue paint drip that was on your bolt when it was new to disappear. This can be easily reapplied by getting some Loctite, find it at the maintenance section of our webshop.

Be aware of frame mounting bolts that are too long, The bolts will stick out in the boot and pierce your liner and your foot.
Measure the length of one of your current bolts to know what length you need, if you have any questions about this, then just send us a photo of your skate and frame setup so that we can give you free advice.

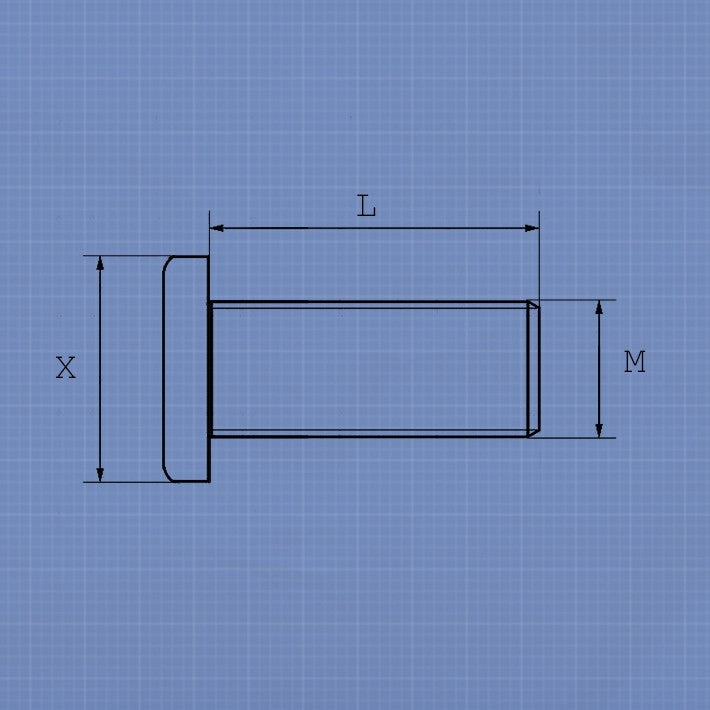

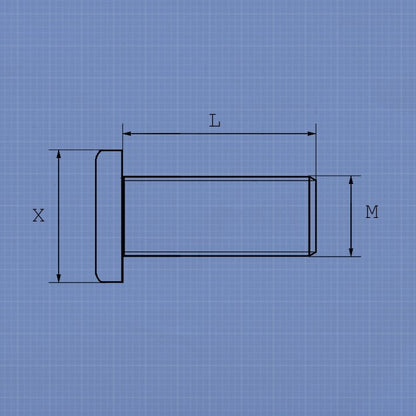

M = UNC 5/16inch
L = 14mm
X = 15mm
